Oak Lawn Workshop Garage Plans
This building has three wide parking bays
and another 12'x24' space that you can use as a workshop, hobby
shop, home office or studio, or just for extra storage space. You can
build this design with the looks of a graceful coach house, with materials that
match your home. Or, build it to look like a barn on your country
property. Details for both styles are included in the free plan set.
Construction of this building uses standard 2x6
studs and 2x8 roof rafters.

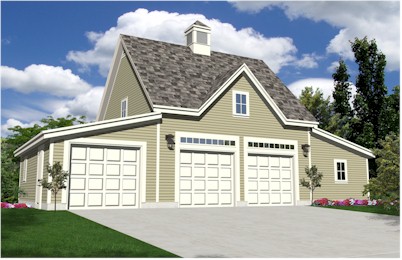

Front View
Floor Plan
Oak Lawn Workshop
Garage
with barn style details and a loft
door and lift post.
Options:
You can build your
workshop garage with shop space and three
parking bays. Or, you
can build an additional side storage or workshop space instead
of one parking bay.
There's a full staircase to the storage loft, or you
can install inexpensive, space-saving pull-down
stairs. There's an optional loft door and lift-post
to help you store bulky items upstairs. You can match your home's siding
and roof materials or use vertical board siding and
optional barn-style details that are included.
All of the options and add-ons help you
customize your building now or any time in the future.
Dimensions:
Heights: Main Building Ridge Height -
24'-4", Main Building Side-Wall Height - 12'-0", Main Building Ceiling Height -
9'-4", Loft Height at center: 8'-2", Loft Height at the eave-side outside walls:
1'-9", Side Shed Side-Wall Height - 8'-1", Roof Pitch of Main
Building:
12/12, Roof Pitch of Expansion Sheds: 3/12
Mean Roof
Height: 18'-2" (Most Building Departments will accept the Mean Roof Height as
the overall height for sloped roof buildings)
Doors:
Vehicle doors on the Main Building can be 8' or 9 wide and 7' or 8' high.
Vehicle doors on the Side Sheds are 8' wide and 7' high.
Main Building Areas: 24'x24' - 576 SF,
24'x26' - 624 SF, 24'x28' - 672 SF
Shed-Roof Side Areas: 12'x24' - 288
SF
All layouts include a storage loft
of the same area as the Main Building, with access by
a full staircase or pull-down stairs.
What's Included on the plans?
|
1/4" Scale Floor Plans
1/4" Scale Roof and Loft Framing Plans
1/4" Scale Exterior Elevations
1/4" Scale Building Section
Builder's Specifications
|
3/4" Scale Wall Sections
1" Scale Footing Details
Structural Frame Isometric
Door & Window Framing Details
Expansion Shed Drawings
|
The plan set
that you'll receive includes optional foundation and slab details to suit your
needs. They include drawings for a variety
of options and expansion sheds. Material
lists may be printed below.
|
|
|
About
downloading
these plans |
You'll have almost immediate access to your
plans on an Adobe Acrobat (PDF) file that you can print on your computer's
printer. You'll need a copy of the Adobe Acrobat Reader. If you don't have one
already, you can download a free copy now.
Download a Free Copy of Adobe
Acrobat Reader
The plans are a multi-page file. Please allow a
few minutes for them to download to your computer.
Have these plans reviewed by your building department or by an
experienced building professional who knows local conditions before you
purchase materials or start to build. The design and the plans may have to be
modified by a local professional to suit your site's conditions, building and zoning codes and
weather requirements.
