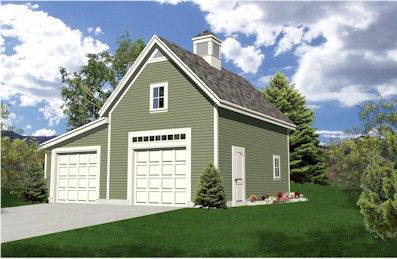

Oakville Expandable
Two-Car Garage Plans
This free set of garage plans
helps you start building with a sturdy, 16' wide, one bay garage with pull-down stairs to a high
and dry storage loft. Add a shed-roof garage to either side and you'll have
parking for two cars, trucks or SUVs. The drawings include blueprints for the extra
garage and a 12' wide expansion shed for the other side too. Build another
parking spot, a storage shed or a workshop whenever you need it.
Front View
Floor Plan
Oakville Two-Car
Garage expanded into a Three-Car Garage
Options:
The
plan set that you can download can help you build a
16' wide by 24', 26' or 28' deep one-car garage. You can build your
garage with one or two additional parking bays right away
or expand it in the future.
Or, you can add side storage or workshop spaces.
You can use almost any exterior materials, so you
can match your home's siding
and roof materials. All of the options and add-ons
help you to customize your building now or any time in the future.
Dimensions:
Heights: Main Garage Ridge Height -
20'-4", Main Garage Side-Wall Height - 12'-0", Main Garage Ceiling Height -
8'-5", Loft Height at center: 7'-8", Loft Height at the eave side outside walls:
2'-8", Expansion Shed Side-Wall Height - 8'-1", Roof Pitch of Main Garage:
12/12, Roof Pitch of Expansion Sheds: 3/12
Mean Roof
Height: 16' (Most Building Departments will accept the Mean Roof Height as
the overall height for sloped roof buildings)
Expansion Shed Areas: 12'x24' - 288
SF
Doors:
Overhead garage doors are 8' wide and 7' high.
What's Included on the plans?
|
1/4" Scale Floor Plans
1/4" Scale Roof and Loft Framing Plans
1/4" Scale Exterior Elevations
1/4" Scale Building Section
Builder's Specifications
|
3/4" Scale Wall Sections
1" Scale Footing Details
Structural Frame Isometric
Door & Window Framing Details
Expansion Garage Drawings
|
The plan set
that you'll receive includes optional foundation and slab details to suit your
needs. They include drawings for a variety
of options and expansion sheds. Material
lists may be printed below.
|
|
|
About
downloading
these plans |
You'll have almost immediate access to your
plans on an Adobe Acrobat (PDF) file that you can print on your computer's
printer. You'll need a copy of the Adobe Acrobat Reader. If you don't have one
already, you can download a free copy now.
Download a Free Copy of Adobe
Acrobat Reader
The plans are a multi-page file. Please allow a
few minutes for them to download to your computer.
Have these plans reviewed by your building department or by an
experienced building professional who knows local conditions before you
purchase materials or start to build. The design and the plans may have to be
modified by a local professional to suit your site's conditions, building and zoning codes and
weather requirements.
